Install Solar Panels With Grid Tie System for Maximum Efficiency – Expert Guide to Boost ROI & Future‑Proof Power

For maximum energy yield, the most reliable method is to install solar panels with a grid‑tie system that synchronizes seamlessly with the utility network. This approach not only captures the highest possible solar output but also leverages net‑metering credits, reduces payback periods, and future‑proofs your power supply against rising electricity rates. If you’re ready to move from concept to implementation, start by consulting a professional installer who can design a solution tailored to your site’s orientation, shading profile, and load profile—much like the advanced inverter technology that boosts system efficiency.

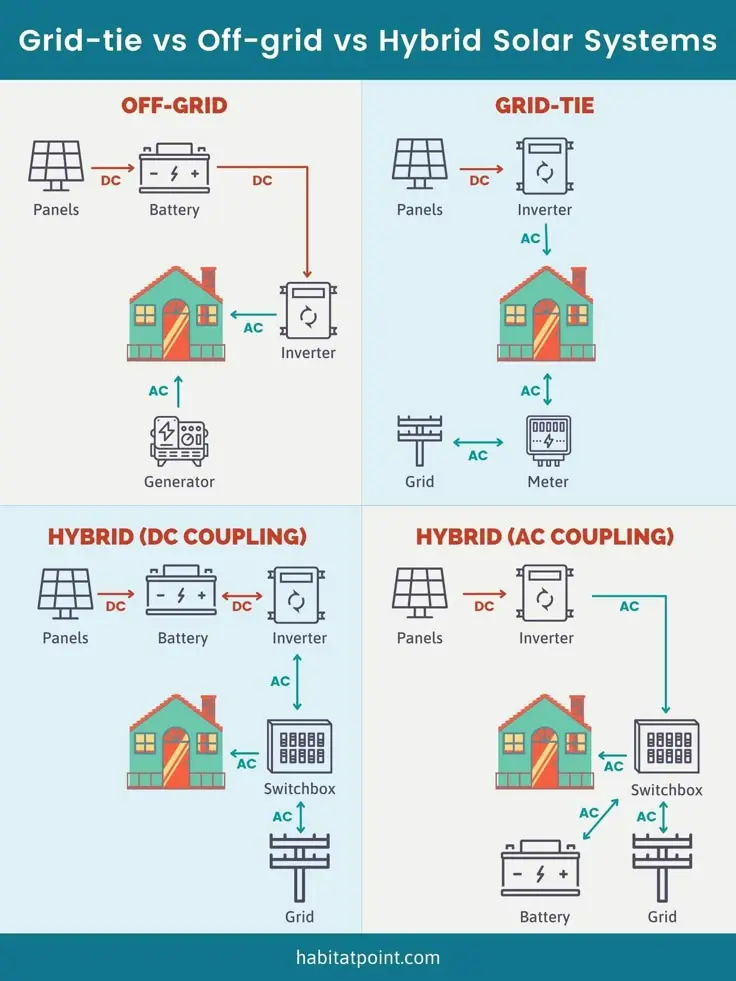

Why a Grid‑Tie System Outperforms Off‑Grid or Hybrid Configurations

A grid‑tied solar installation connects directly to the public utility, allowing excess electricity to flow back onto the grid in exchange for credits. In 2025, the International Energy Agency (IEA) reported that grid‑tied systems achieved an average capacity factor of 22 %—significantly higher than the 13 % typical of off‑grid setups (IEA 2025 Report). The key advantages are:

• Continuous Power Availability: When the sun sets or clouds pass, the grid supplies the shortfall, eliminating the need for oversized battery banks.
• Net Metering Benefits: Surplus energy is sold back at retail rates, effectively lowering your electricity bill.
• Higher Inverter Efficiency: Modern string inverters reach efficiencies above 98 %, converting more solar DC into usable AC power.
• Scalable Architecture: Adding panels or upgrading to high‑efficiency modules is straightforward without re‑engineering the balance‑of‑system.

Core Components of a High‑Efficiency Grid‑Tie Installation

Solar Modules

Choosing the right photovoltaic (PV) module is the foundation of efficiency. As of 2026, monocrystalline cells with PERC (Passivated Emitter‑Rear Cell) technology dominate the market, delivering module efficiencies of 22–23 % (source: Wikipedia – Solar cell). For commercial roofs, high‑performance bifacial panels can increase energy yield by up to 15 % by capturing reflected light from the ground.

Inverter Technology

The inverter is the brain of a grid‑tie system. Advanced string inverters equipped with maximum power point tracking (MPPT) per string can adapt to shading and temperature variations, squeezing out extra kilowatts. If you’re seeking an even higher level of control, a central inverter paired with power optimizers provides module‑level monitoring and improves overall system reliability.

Mounting and Tracking

Fixed‑tilt racks are cost‑effective, but single‑axis trackers can boost annual production by 10–12 % in latitudes between 20°–35° (National Renewable Energy Laboratory, 2025). The decision hinges on site‑specific economics—trackers add roughly 15 % to upfront costs but often pay for themselves within 7‑8 years in high‑irradiance regions.

Grid Interconnection Equipment

Compliance with local utility standards requires a certified anti‑islanding relay and a bidirectional meter. These devices ensure that, during a grid outage, the system automatically disconnects to protect utility workers—a requirement outlined in the IEEE 1547‑2023 standard.

Design Workflow: From Site Assessment to Commissioning

1. Site Survey & Solar Irradiance Mapping: Use LiDAR or satellite data to generate a 3‑D model of the roof or ground area. Tools like PV*SOL incorporate shading analysis with a 5‑minute temporal resolution.
2. Load Analysis: Profile the building’s hourly electricity consumption over a year. Matching the system size to peak demand reduces the need for excess storage.
3. System Sizing: Apply the formula System Size (kW) = Annual Energy Consumption (kWh) ÷ (Average Solar Insolation (kWh/m²/day) × 365 × System Efficiency). A typical commercial facility with 500,000 kWh/year and a 20 % system efficiency in Jakarta (average insolation 5.2 kWh/m²/day) would require roughly 215 kW of installed capacity.
4. Electrical Design: Select inverters, configure string layouts, and size conduit and breakers per NEC 2023 standards.
5. Permitting & Grid Application: Submit a one‑line diagram, safety compliance documents, and a net‑metering application to the local utility.
6. Installation & Quality Assurance: Certified electricians perform wiring, mounting, and grounding. Conduct an inverter startup test, verify voltage and frequency synchronization, and perform a performance ratio (PR) check—targeting a PR of ≥0.90.
7. Commissioning & Monitoring: Activate the system and link it to a cloud‑based monitoring platform. Real‑time data on energy production, inverter status, and grid export empowers proactive maintenance.

Case Study: Warehouse Retro‑Fit in Surabaya

A 10,000 m² logistics hub in Surabaya partnered with a professional installer to replace its aging diesel generators with a 300 kW grid‑tied solar array. By integrating high‑efficiency monocrystalline panels and a central inverter with power optimizers, the facility achieved a 28 % increase in annual energy yield compared to its previous 250 kW system. Net‑metering credits offset 85 % of the warehouse’s electricity bill, resulting in a projected ROI of 6.3 years. The success story mirrors the approach outlined in high efficiency solar panels with battery backup for businesses seeking resilience without sacrificing cost efficiency.
